HZZD rotary combined multi-deck screen, grain cleaning machine, rice cleaning equipment, wheat cleaning screen, feed grading machine, food screening machine, chemical powder separator, brewing grain cleaner, vibrating screen for grains, high efficiency screening equipment.

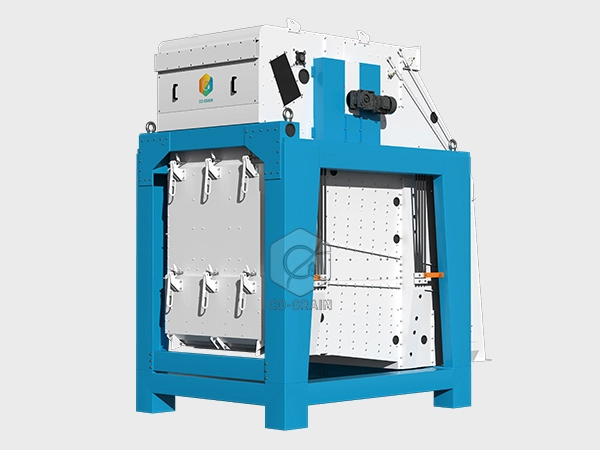

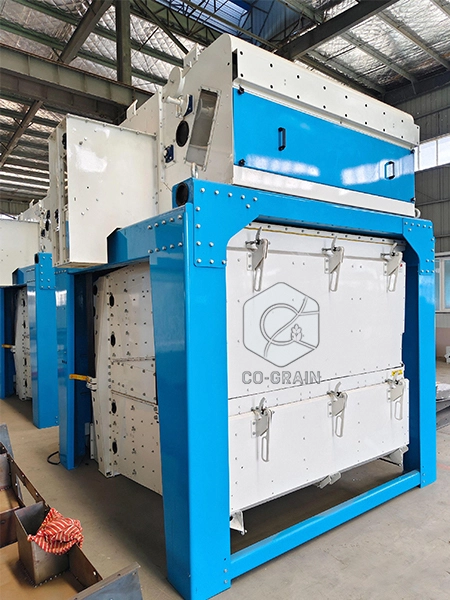

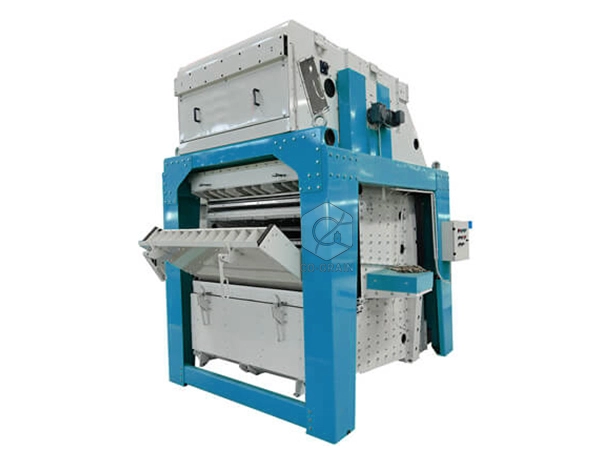

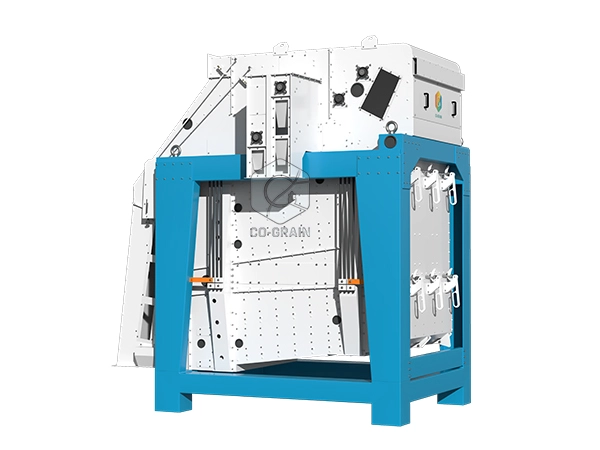

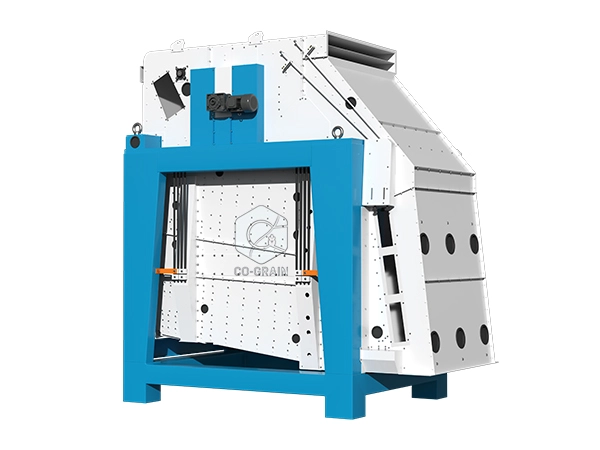

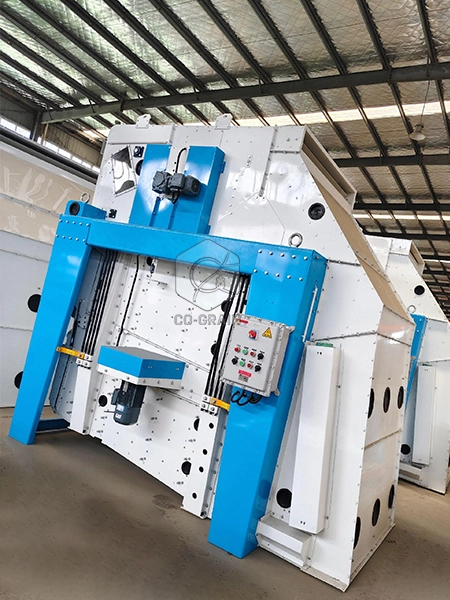

HZZD Multi-Deck Rotary Cleaner Introduction
The HZZD Rotary Combined Multi-Deck Screen is a high-efficiency cleaning and grading machine engineered for accurate separation of large and small impurities from granular materials. Featuring a rotary motion and multi-deck design, it ensures stable operation, high capacity, and consistent performance, making it an ideal solution for modern processing lines.
This machine efficiently eliminates oversized particles, fine dust, and other impurities to ensure cleaner raw materials and more uniform product quality. Its multi-deck structure enables simultaneous separation into multiple size grades, significantly enhancing processing efficiency.
This equipment efficiently removes large particles, fine dust, and various impurities, guaranteeing cleaner raw materials and consistent product quality. With its multi-deck configuration, it can separate materials into multiple size categories at once, greatly boosting overall processing efficiency.
HZZD Multi-Deck Rotary Cleaner Application
The HZZD Rotary Combined Multi-Deck Screen is suitable for a broad range of industries, including:
1. Grain Processing: Cleaning and classifying rice, wheat, corn, and other cereals.
2. Feed Industry: Ensuring raw feed materials are free from contaminants before further processing.
3. Food Industry: Screening sugar, flour, starch, and other food ingredients with high precision.
4. Chemical Industry: Grading powders, granules, and additives for improved consistency.
5. Brewing Industry: Removing impurities from malt, barley, and other brewing materials to ensure product purity.
HZZD Multi-Deck Rotary Cleaner Features
1. Multi-functional combination design with four sets of eight-layer screen surfaces, enabling simultaneous cleaning of materials (large and medium impurities, small impurities). Large effective screening area ensures high capacity and excellent cleaning and grading performance.
2. Equipped with an integrated air suction separation and dust-settling discharge system, effectively removing light impurities and dust (with external air suction) and discharging them outside the machine in real time.
3. Feeding system includes a multi-channel distributor and vibrating pressure gate, ensuring uniform material distribution across all screen layers for optimal cleaning and grading efficiency.
4. Screen body suspended by a combination of hanging rods for stable operation, minimizing vibration impact on floors and structures.
5. Metal screen frames with reduced thickness yet high strength and rigidity; flat screen surfaces; convenient and simple installation/removal; excellent interchangeability.
6. Fitted with a brake motor for safe and reliable operation, with minimal idle running time.
7. Low energy consumption—approximately 0.031 kW per ton of grain processed.
HZZD Multi-Deck Rotary Cleaner Technical Parameters
| Model | HZZD150*200/8 | HZZD200*200/8 |
| Capacity(t/h) | 120-140 | 150-180 |
| Ratary Speed(r/min) | 300±5 | 300±5 |
| Power(kw) | 3+0.75+0.04*2 | 4+0.75+0.04*2 |
| Weight(kg) | 6100 | 7100 |
| Dimension(mm) | 3462*2445*3892 | 3462*2945*3892 |
