Gravity Paddy Separator
This gravity paddy rice separating machine is mainly used in the rice mill production line, between the rice huller machine and rice mill machine. It mainly functions is to separate coarse rice mixture into pure coarse rice that has strong adaptability to raw materials featuring serious varietal complexity.
Tel: 0086-13196770111
Whatsapp: 0086-13196770111
Follow Us:
Overview
MGCZ Gravity Paddy Separator in Rice Mill Plant Introduction
MGCZ series gravity paddy rice separating machine is mainly used in the rice mill production line, between the rice huller machine and rice mill machine. It mainly functions is to separate coarse rice mixture into pure coarse rice that has strong adaptability to raw materials featuring serious varietal complexity.
gravity paddy separator-rice mill plant
It designs with many layers sieves to separate the paddy rice and brown rice then send them into different working step to be work. Its working principle makes according to the paddy rice and brown rice different gravity weight. For the paddy rice need to be well hulled then feed into the rice mill machine for making white rice. After the rice huller machine, some paddy may can not be hulled well, so paddy rice separator machine will separate these parts out and then send them back to the huller machine to be hulled again, then again and again, then the well hulled brown rice will be feed into the rice mill machine for making white rice.

gravity paddy separator cost-rice mill plant

gravity paddy separator for sale-rice mill plant

gravity paddy separator price-rice mill plant


The paddy rice separator machine no need larger motor power can make the work well, it is a very important parts to for making the whole production line smoothly and high capacity. And also for its inside layers can be made for clients different capacity needs.

For the paddy rice separator machine is designed with compact structure, easy to operate and use, low power consumption, and good applicability for long grain and short grain, steady performance.

MGCZ Gravity Paddy Separator in Rice Mill Plant Advantages
1. High capacity, steady performance, low noise and power consumption.
2. Unique balance mechanisms ensure the steady and excellent performance.
3. Adopting blade type swing mechanism and bearing of one-way clutch, prolong the service life of components.
4. Durable imported parts, advanced automatic stop system, convenient operation.
5. Suitable for various kinds of rice and mixtures, especially for the short-grain rice.
 gravity paddy separator structure-rice mill plant

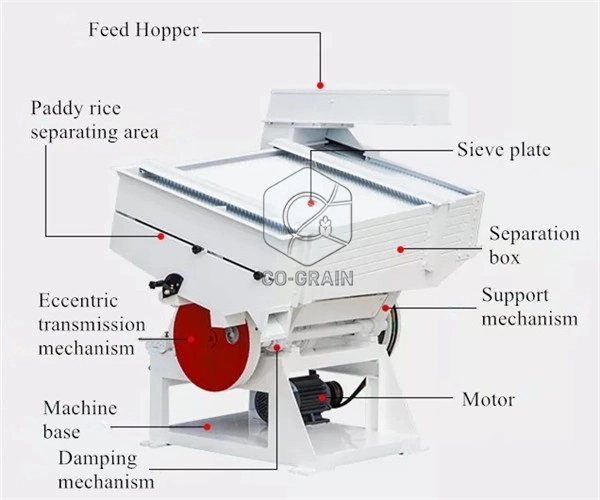

MGCZ Gravity Paddy Separator in Rice Mill Plant Structure
(1) Feed hopper (2) Sieve plate (3) Paddy rice separating area (4) Separation box (5) Support mechanism (6) Eccentric transmission (7) Damping mechanism


gravity paddy separator structure-rice mill plants


Technical Parameter of Gravity Paddy Separator:
For the paddy rice separator machine in rice mill plant, we have different models with different capacities to suitable for different clients needs, also if clients has their special requirements for the machines, we can customized for you.


Model Capacity(t/h) Power(kw) Dimension(mm)
MGCZ80*6 0.8-1.3 1.1 1350*1000*1400
MGCZ80*7 1.1-1.5 1.1 1350*1000*1450
MGCZ100*6 1.2-1.6 1.1 1600*1250*1400
MGCZ100*7 1.3-2.1 1.1 1600*1250*1450
MGCZ100*8 2.1-2.4 1.1 1600*1250*1500
MGCZ100*10 2.5-3.2 1.5 1650*1250*1750
MGCZ100*12 3.4-4 1.5 1650*1250*1800
MGCZ100*14 4-4.9 1.5 1700*1350*1740
MGCZ100*16 4.5-5.6 1.5 1700*1350*1820
